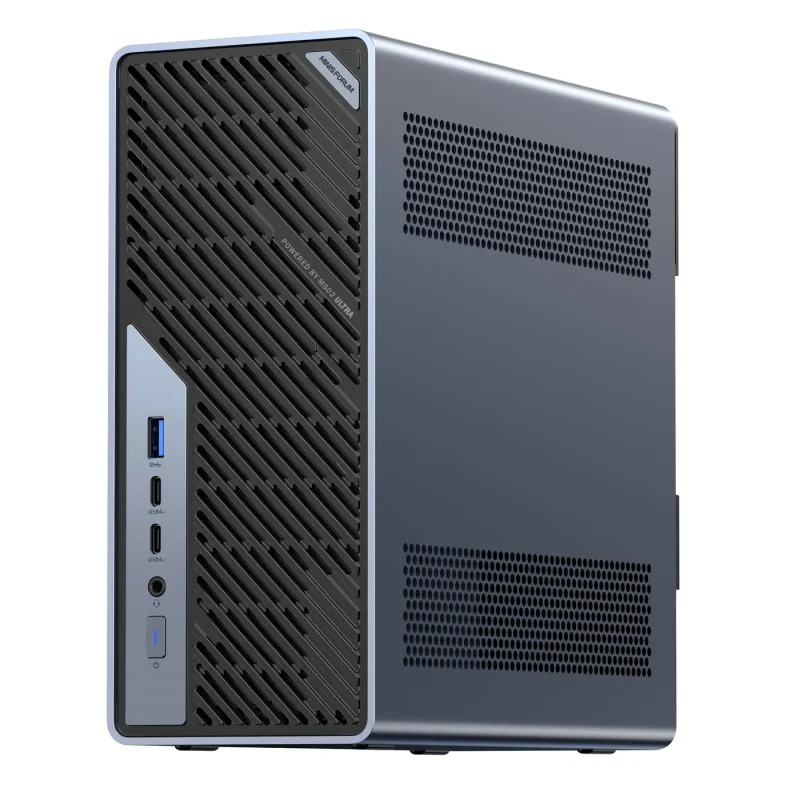

Minisforum MS-02 Ultra mini PC
Minisforum MS-02 Ultra is a highly modular and powerful mini PC designed for professional and enthusiast workloads, featuring an Intel® Core™ Ultra 285HX or Ultra 9 275HX processor and extensive expansion options. Its key strengths are its strong CPU performance, significant expandability (including a PCIe 5.0 x16 slot), and ultra-fast networking capabilities.
Processor : Powered by Intel® Core™ Ultra 285HX or Ultra 9 275HX, featuring 24 cores to effortlessly handle intensive workloads like AI development, 3D rendering, and 4K video editing.
Memory : 4 x DDR5 SO-DIMM slots, supporting up to 256 GB total capacity at up to 4800 MT/s (ECC for 285HX ; non-ECC for 275HX), ensuring stability and fault tolerance for mission-critical tasks.
Storage : Four (285HX model) or Two (275HX model) M.2 2280 PCIe 4.0 x4 slots offer massive storage potential, with total capacity support up to 16/32TB, allowing you to store all your projects and assets in one place.
Graphics & Expansion : Its revolutionary design includes three PCIe slots: a full-length PCIe 5.0 x16, a full-length PCIe 4.0 x16, and a PCIe 4.0 x4 . Install a dual-slot GPU, a high-speed network card, or other expansion cards simultaneously.
Ultra-Fast Connectivity : Features next-generation USB4 V2.0 ports on the front panel, delivering blazing 80 Gbps bandwidth for ultra-fast external storage and eGPU connectivity.
Professional Networking : High-end configurations come pre-installed with a dual 25GbE SFP+ fiber network card (285HX model), alongside a 10GbE and a 2.5GbE RJ-45 port with vPro support, making it a beast for data transfer and remote management.
Wireless Ready : Equipped with WiFi 7 and Bluetooth 5.4 for the latest wireless speeds and connectivity.
Rich I/O Ports : Comprehensive connectivity includes HDMI (2.1), multiple USB 3.2 Gen 2 Type-A ports, and a 3.5mm audio jack.
Advanced Cooling : A server-inspired thermal design enables a maximum 240W total system performance, with both the CPU and GPU capable of a 140W sustained power draw.
Effortless Maintenance : A slide-out chassis design makes upgrading and maintenance simple and tool-free.
